4012 brushless external rotor motor

PTZ motor Brushless
Features
Get Samples Now

Applications

Smart Home
Precision Agriculture
Specifications

Performance

  • Voltage Range
    9-16v
  • Rated Voltage
    12
  • Rated Current
    0.95A
  • Rated Torque
    0.13N.m
  • Rated Speed
    {content:operating_speed}
  • Rated Power
  • No-load Speed
    950rpm
  • No-load Current
    115mA
  • Stall Torque
    0.2N.m
  • Stall Current
    2A
  • Max Efficiency
    65%
  • KV
    75

Other Specs

  • Dimensions
  • Weight
    132g
  • Control Method
  • Communication
  • Encoder Sensor
  • Encoder Resolution
  • Pole Pairs
  • Working Temperature
    -10~55°C
  • IP Rating
    IP4X

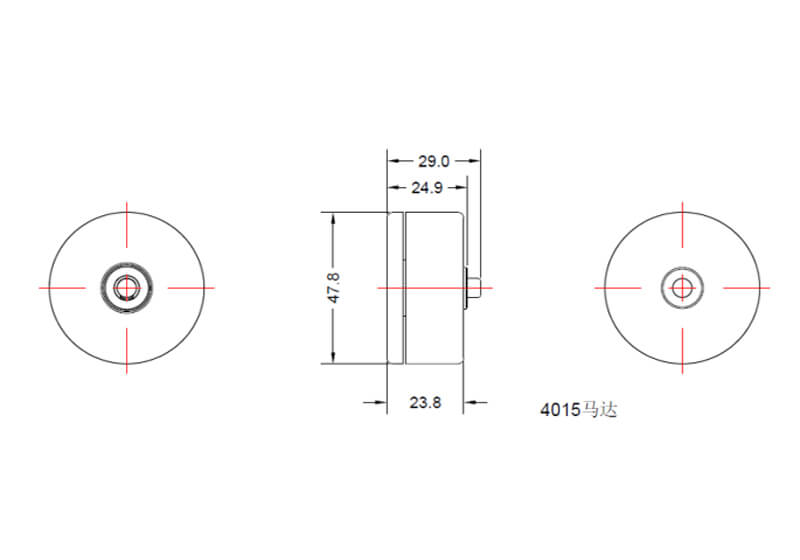

Dimension drawing

/static/upload/image/20230630/1688094224421276.jpgDimension drawing

Characteristic curves

Downloads

Specification
2D Drawings
3D Model
