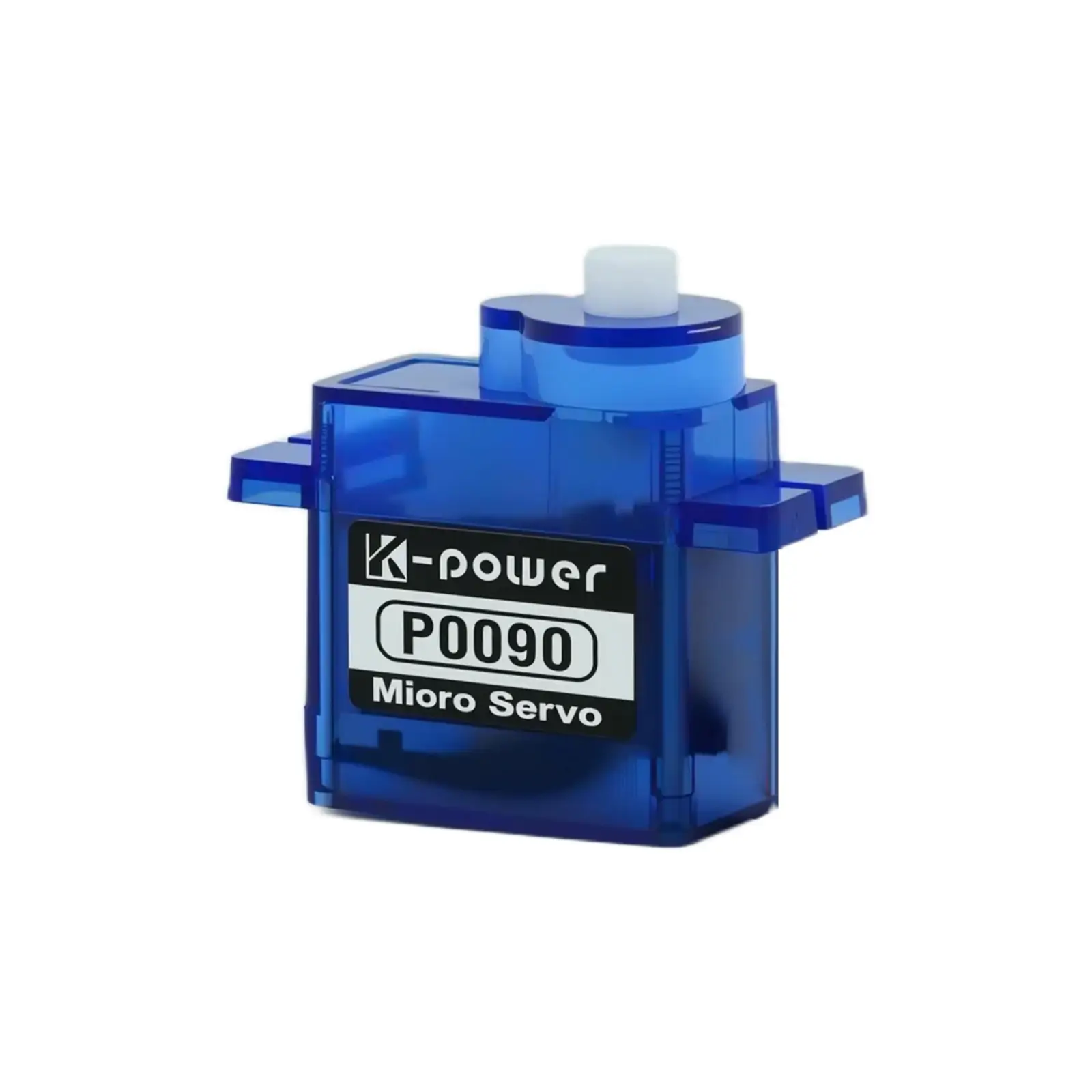

P0090 9G Plastic Gear Micro Servo
P0090 9G Plastic Gear Micro Servo
P0090 9G Plastic Gear Micro Servo
P0090 9G Plastic Gear Micro Servo

P0090 9G Plastic Gear Micro Servo

Adopts POM gears and brushed motors, which are compact and cost-effective.

Features

  • 9g lightweight design
  • Standard PWM drive
  • Low-cost plastic teeth
  • 0.09s/60° high-speed response

Add to Inquiry
Get a Sample Now

Applications

Remote Switch Robot
Remote Switch Robot
fixed-wing drone
fixed-wing drone
RC model aircraft
RC model aircraft
Medical automatic detection equipment
Medical automatic detection equipment
STEAM educationSTEAM education
STEAM educationSTEAM education

Specifications

Performance Parameters

  • Stall Torque
    1.8kg·cm

  • No-load Speed
    0.09sec/60°

  • Travel Angle
    120° *custom supported

  • Voltage Range
    4.8-8.4V

  • Stall Current
    1000mA

  • Dimensions
    22.7x12.5x26.9mm

  • Weight
    9g (0.32oz)

  • Case Material
    Plastics

  • Gear
    POM

  • Spline
    21T Φ4.8mm

  • Bearing
    2BB

  • Motor
    DC Brushed Motor

  • Position Sensor
    Potentiometer

  • Signal & Protocol
    PWM | UART-TTL | RS-485

  • Waterproof
    IP42

  • Operating Temperature
    -10~50°C


Dimension Drawing & Accessories

FAQs

What types of servos and motors are provided?

Kpower offers over 300 servo models and over 50 brushless motor variants. Ranging from 2.5g micro servos to 200kg high-torque brushless servos, and from UAV power motors to brushless hub motors. Our products span multiple industries, such as smart homes, drones, electric vehicles, and precision agriculture.

Can you recommend some mass-produced models?

Click the side entrance on the page to get in touch with our product experts or fill in the inquiry form. Our product engineers will recommend suitable drive modules for you.

How to contact Kpower?

You can email your requirements to info@kpower.com or call us at +86-180 0277 7165. Our company headquarters is located in Hengli Town, Dongguan, China. You are welcome to visit and discuss at any time.

How can I apply for samples? How long will it take for delivery?

For industry-leading customers, we are pleased to offer some free samples for functional verification. For specific details, click the side entrance on the page to contact our product experts. For standard products in stock, samples will be dispatched within 48 hours after order confirmation. For custom products, please contact our sales representative for the delivery time.




What do I need to provide for customizing?

We hope you can share demand info such as product functions, usage scenarios, and reliability, including but not limited to torque, speed, voltage, size boundaries, and communication protocols. Our engineers and product experts will provide you with the most suitable product solution from multiple perspectives such as technical feasibility, manufacturing feasibility, product reliability, and cost optimization according to your needs.
