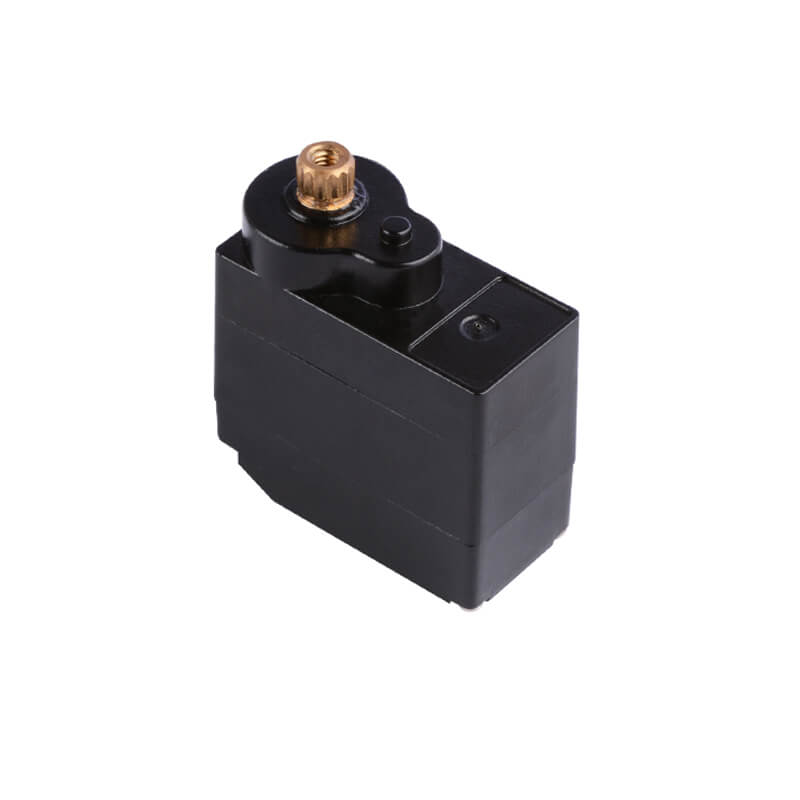

08YY 3KG Mini Digital Metal Gear Servo

digital metal gear
Features
Get Samples Now

Applications

R/C Models
Smart Home
Specifications

Performance

  • Voltage
    7.4V
  • Rated torque
    /
  • Rated current
    /
  • Stall torque
    4kg·cm
  • Stall current
    1300mA
  • Operating speed
    {content:operating_speed}
  • No load current
    500mA
  • Idle current
    6mA

Mechanical

  • Dimensions
    23.7*11.7*20.3
  • Weight
    700 ± 5 mmg
  • Limit angle
    13
  • Excessive play
    ≤0.5°
  • Shell material
    Plastic
  • Gear material
    Metal
  • Spline
    15T
  • Bearing type
    TOP BB
  • Motor type
    DC Motor
  • Angle sensor
  • Storage temperature
    /
  • Operating temperature
    -10℃～50℃

Control & Protection

  • Signal type
    PWM
  • Rotation angle
  • Pulse width range
    500→2500 μsec
  • Neutral position
    1500 μsec
  • Dead band
    4 μsec
  • Rotating direction
    Counterclockwise
  • Feedback
    /
  • Protection type
    /

Reliability

  • Load life
    /
  • Noise
    /
  • Waterproof
    /

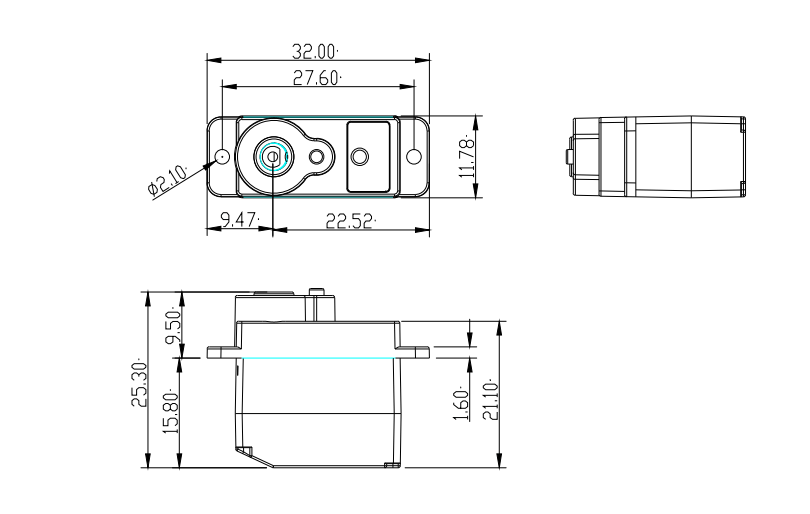

Dimension Drawing

/static/upload/image/20230328/1679989151779794.png dimension drawings
