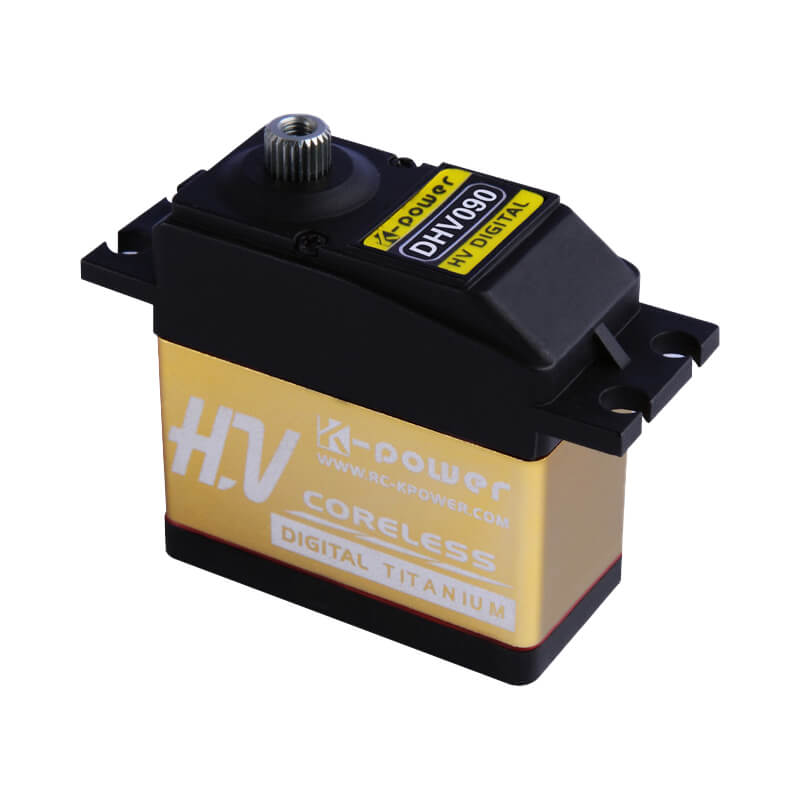

DHV090 10.8KG HV Coreless Metal Mid Case Servo

Coreless HV

  • The Aluminum mid case design allows cooler and smoother operating temperature.

  • Extremely strong Titanium alloy gear, providing high level of durability.

  • Coreless motor provides high speed, incredible efficiency and low power consumption.

Features
Get Samples Now

Applications

R/C Models
Specifications

Performance

  • Voltage
    7.4V
  • Rated torque
    /
  • Rated current
    /
  • Stall torque
    13kg·cm
  • Stall current
  • Operating speed
    {content:operating_speed}
  • No load current
    650mA
  • Idle current
    6mA

Mechanical

  • Dimensions
    40*20*39mm³
  • Weight
    65g
  • Limit angle
    120°
  • Excessive play
    ≤0.5°
  • Shell material
    aluminum case
  • Gear material
    Titanium
  • Spline
    25T
  • Bearing type
    Dual BB
  • Motor type
    Coreless Motor
  • Angle sensor
  • Storage temperature
    /
  • Operating temperature
    -10℃～50℃

Control & Protection

  • Signal type
    PWM
  • Rotation angle
  • Pulse width range
    900→2100 μsec
  • Neutral position
    1500 μsec
  • Dead band
    3μsec
  • Rotating direction
    Counterclockwise
  • Feedback
    /
  • Protection type
    /

Reliability

  • Load life
    /
  • Noise
    /
  • Waterproof
    /

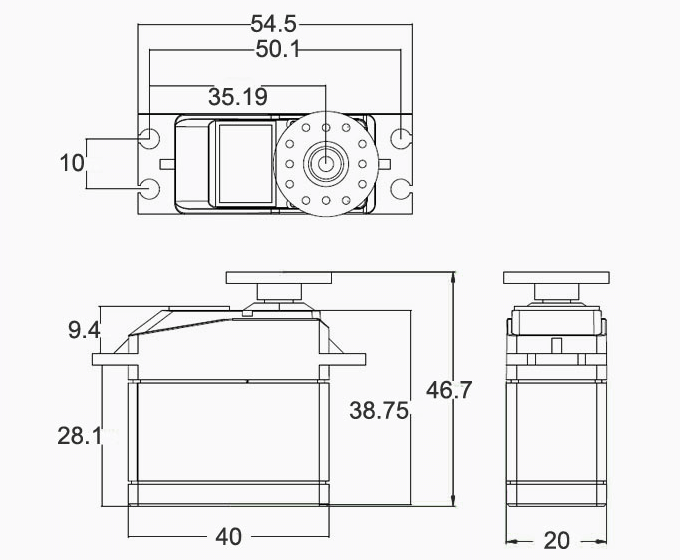

Dimension Drawing

/static/upload/image/20230330/1680167070722244.png dimension drawings

Downloads

Specification
2D Drawings
3D Model
Usage Guidelines

FAQs

Select 2D drawings download format

PDF
DWG

Select 3D drawings download format

STEP
IGES
STL
