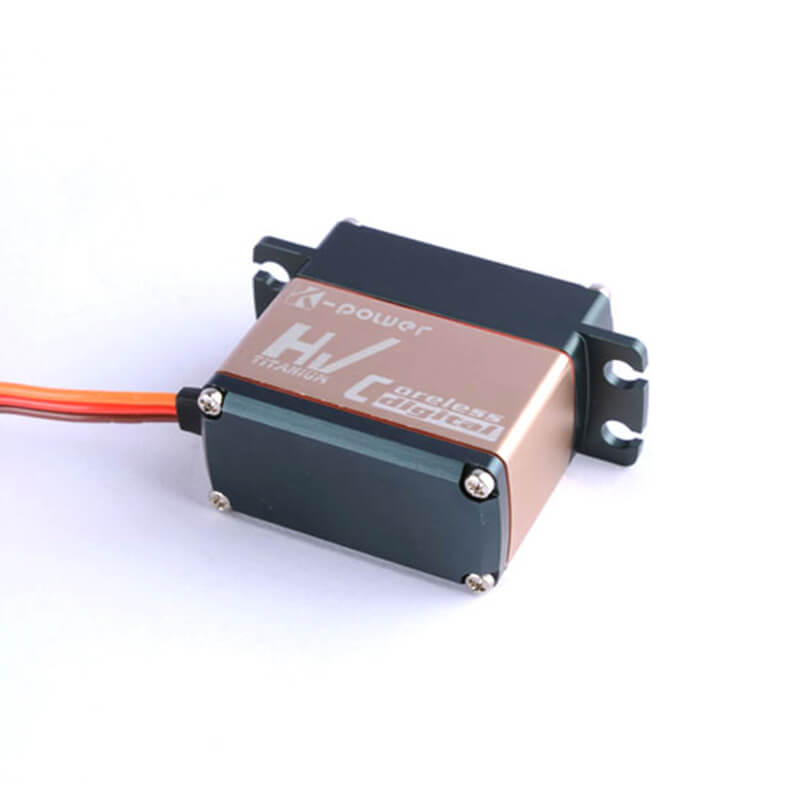

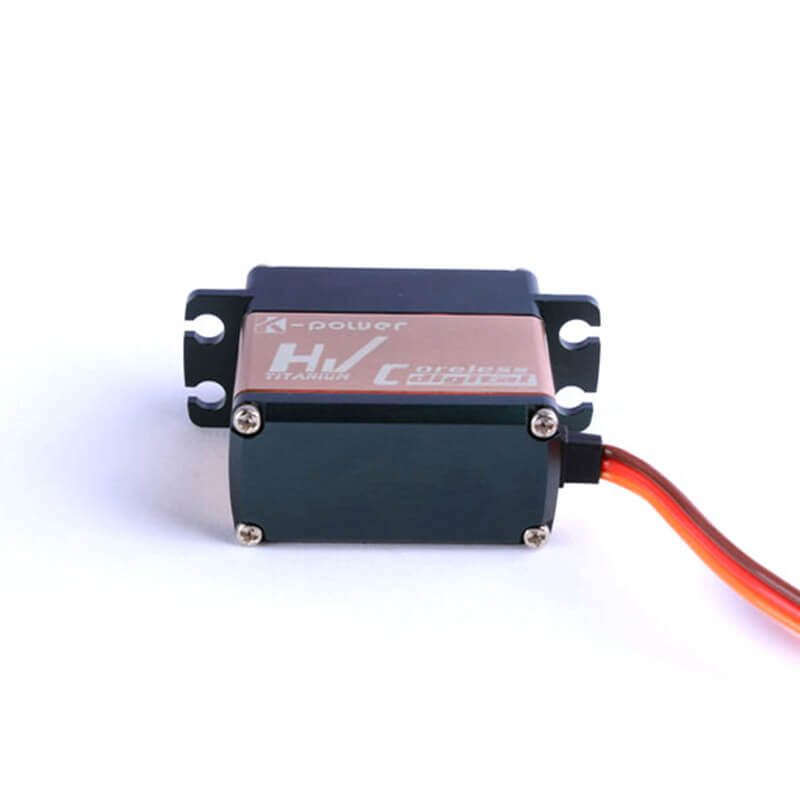

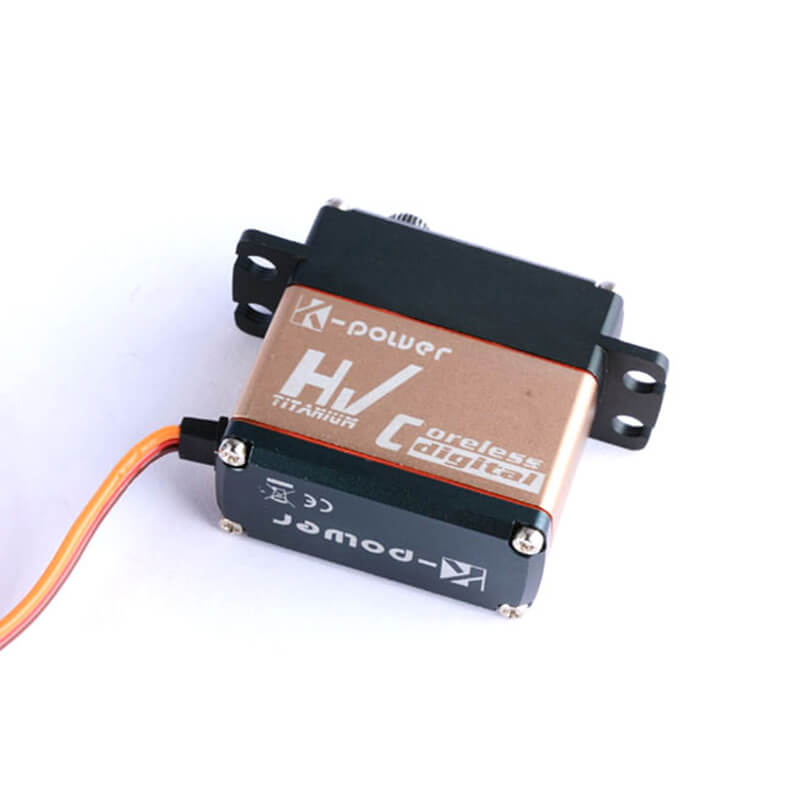

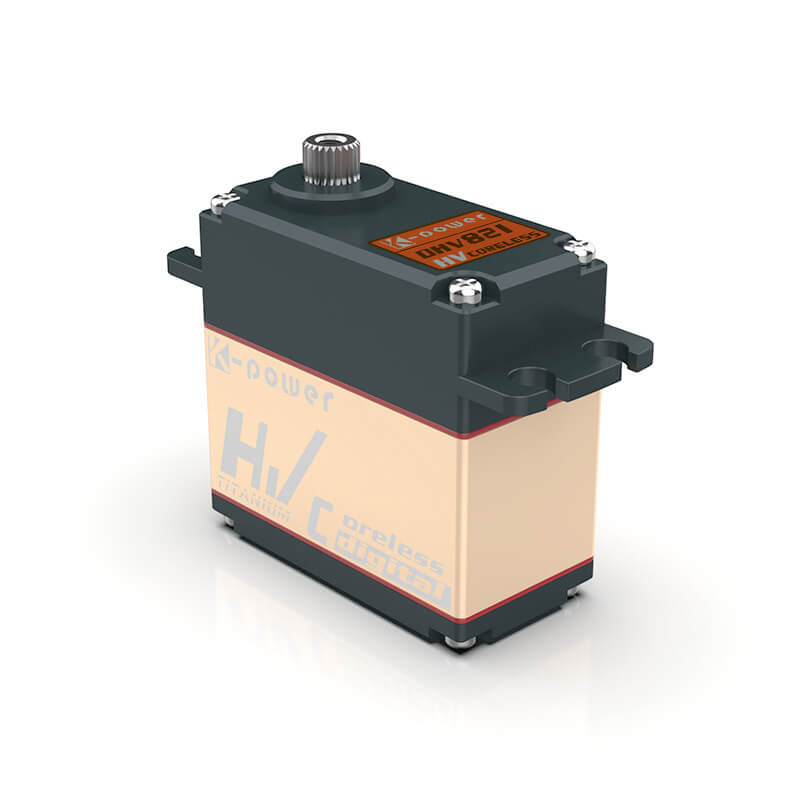

DHV821 5.9KG HV Coreless Full Aluminum Case Servo

Coreless HV Full aluminum


Features
Get Samples Now

Applications

Robotics
Scientific Agriculture
Specifications

Performance

  • Voltage
    7.4v
  • Rated torque
    /
  • Rated current
    /
  • Stall torque
    6kg·cm
  • Stall current
    3100mA
  • Operating speed
    {content:operating_speed}
  • No load current
    1200mA
  • Idle current
    20mA

Mechanical

  • Dimensions
    40*20*39mm³
  • Weight
    67.5g
  • Limit angle
    about 120°
  • Excessive play
    ≤0.5°
  • Shell material
    full CNC aluminum case

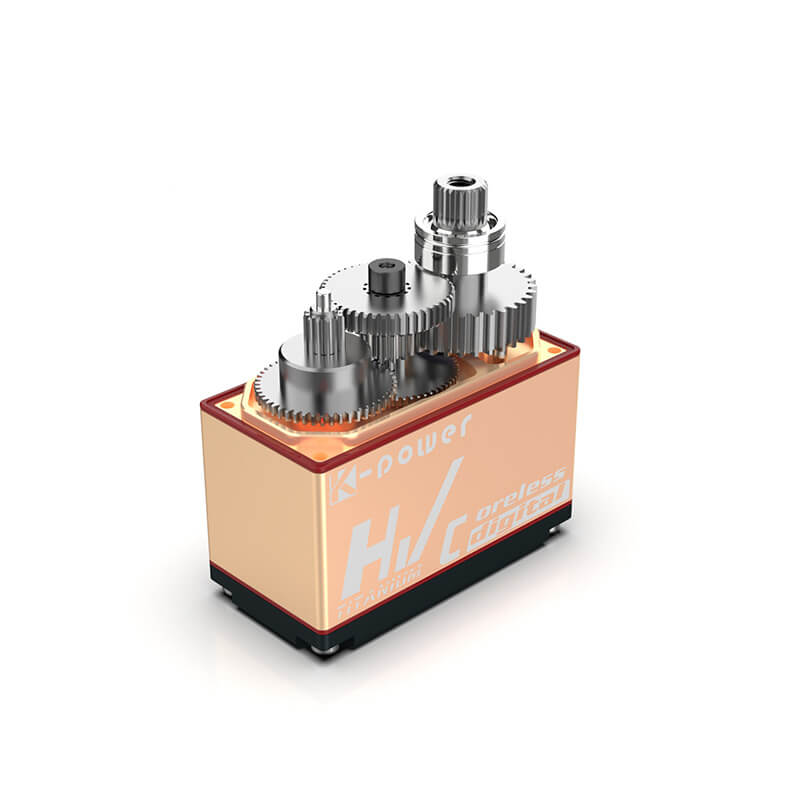

  • Gear material
    Titanium
  • Spline
    25T
  • Bearing type
    DUAL BB
  • Motor type
    coreless motor
  • Angle sensor
  • Storage temperature
    -20℃～60℃
  • Operating temperature
    -10℃～50℃

Control & Protection

  • Signal type
    PWM
  • Rotation angle
  • Pulse width range
    900→2100 μsec
  • Neutral position
    1500 μsec
  • Dead band
    /
  • Rotating direction
    counterclockwise
  • Feedback
    /
  • Protection type
    /

Reliability

  • Load life
    /
  • Noise
    /
  • Waterproof
    /

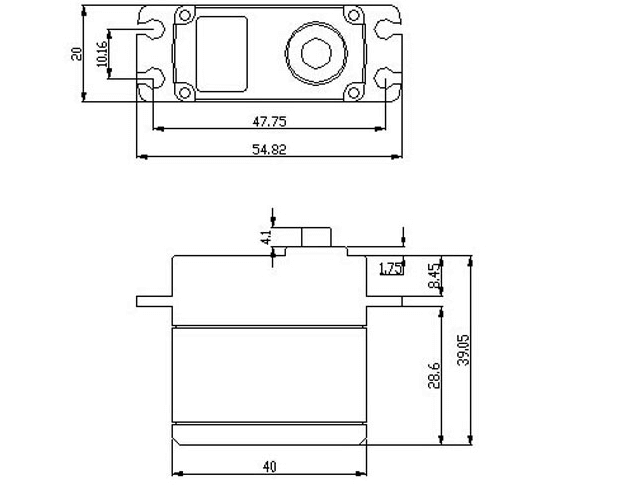

Dimension Drawing

/static/upload/image/20230325/1679732157188021.png dimension drawings
