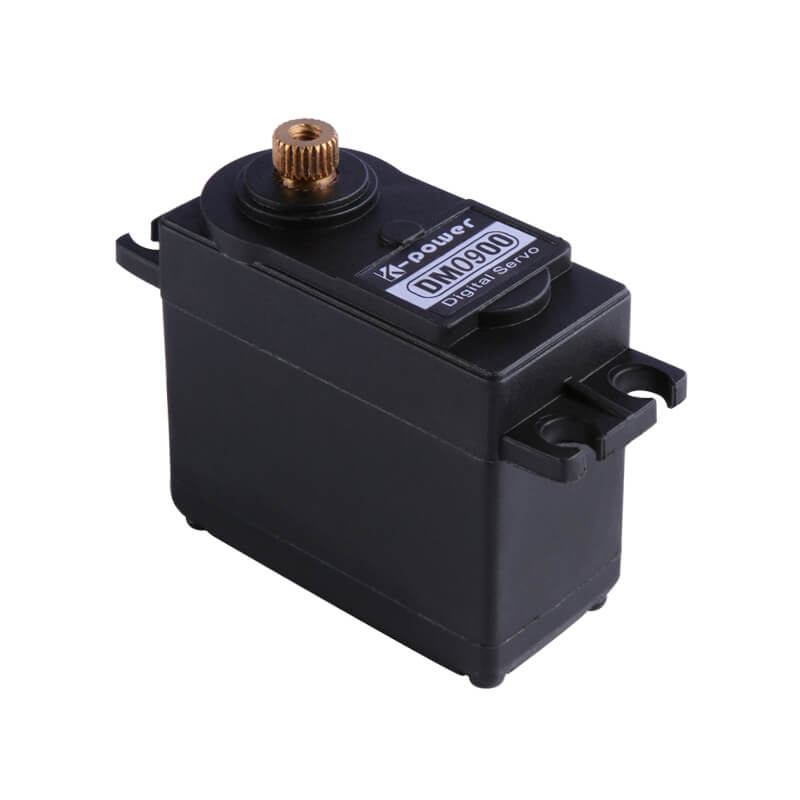

DM0900 Digital Servo

digital DC Metal Gear
Features
Get Samples Now

Applications

R/C Models
UAV Drone
Specifications

Performance

  • Voltage
    6.0V
  • Rated torque
    /
  • Rated current
    /
  • Stall torque
    14kg·cm
  • Stall current
    2200mA
  • Operating speed
    {content:operating_speed}
  • No load current
    600mA
  • Idle current
    6mA

Mechanical

  • Dimensions
    /
  • Weight
    60g
  • Limit angle
    180°
  • Excessive play
    ≤0.5°
  • Shell material
    plastic
  • Gear material
    Metal
  • Spline
    25T
  • Bearing type
    Dual BB
  • Motor type
    DC Motor
  • Angle sensor
  • Storage temperature
    /
  • Operating temperature
    -10℃～50℃

Control & Protection

  • Signal type
    PWM
  • Rotation angle
  • Pulse width range
    500→2500 μsec
  • Neutral position
    1500 μsec
  • Dead band
    /
  • Rotating direction
    counterclockwise
  • Feedback
    position feedback
  • Protection type
    blocking protection

Reliability

  • Load life
    /
  • Noise
    /
  • Waterproof
    /

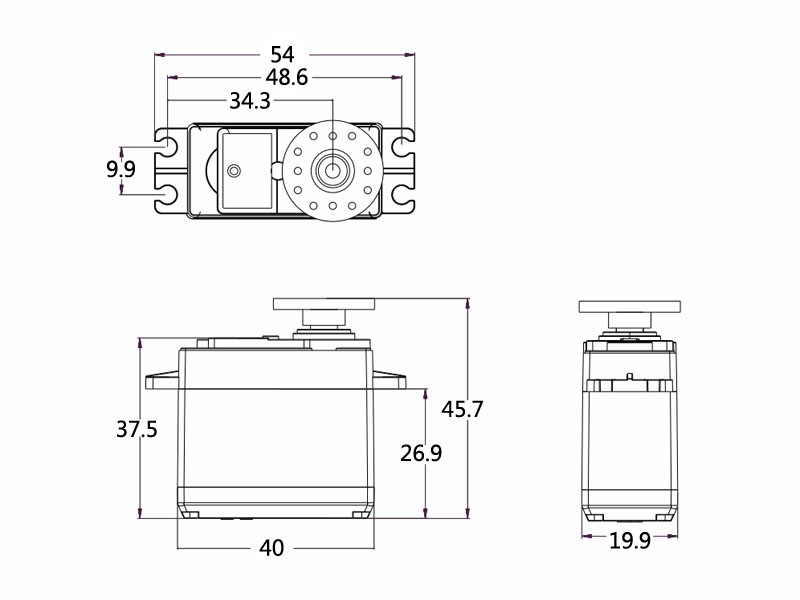

Dimension Drawing

/static/upload/other/20230327/1679901653632717.jpeg dimension drawings

Downloads

Specification
2D Drawings
3D Model
Usage Guidelines

FAQs

Select 2D drawings download format

PDF
DWG

Select 3D drawings download format

STEP
IGES
STL
