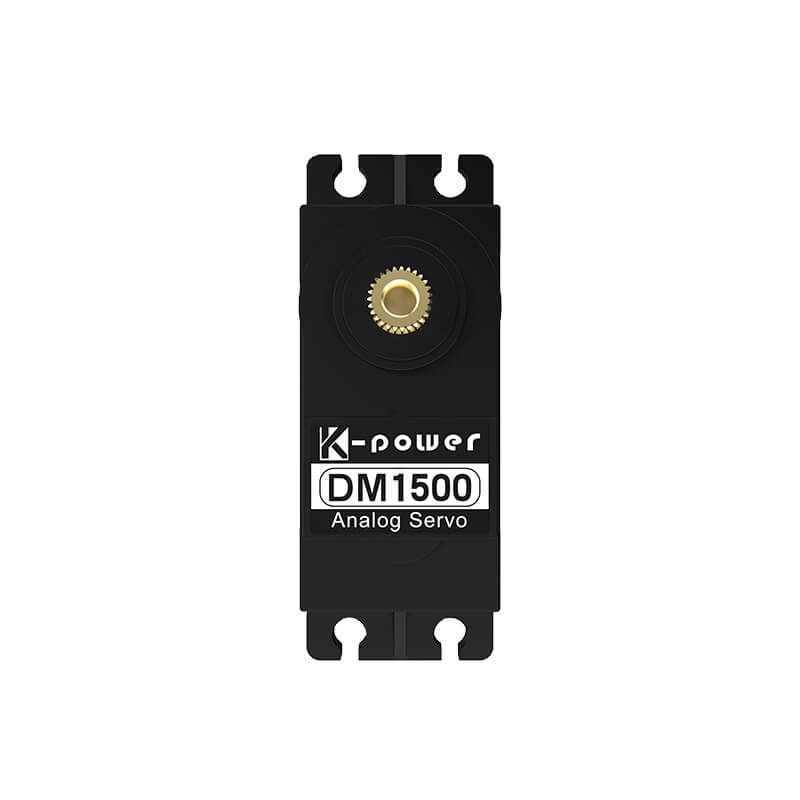

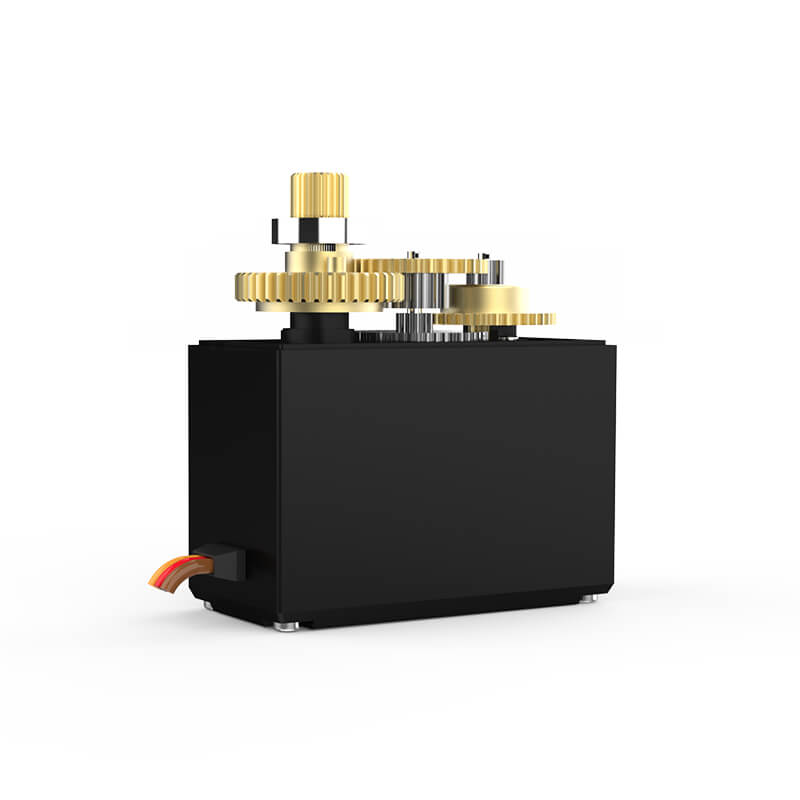

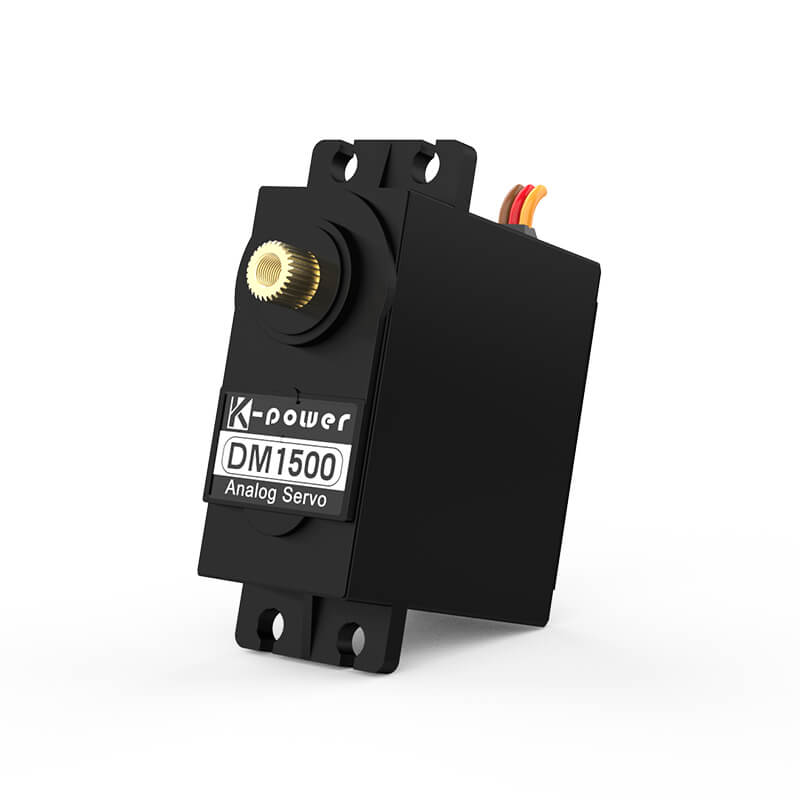

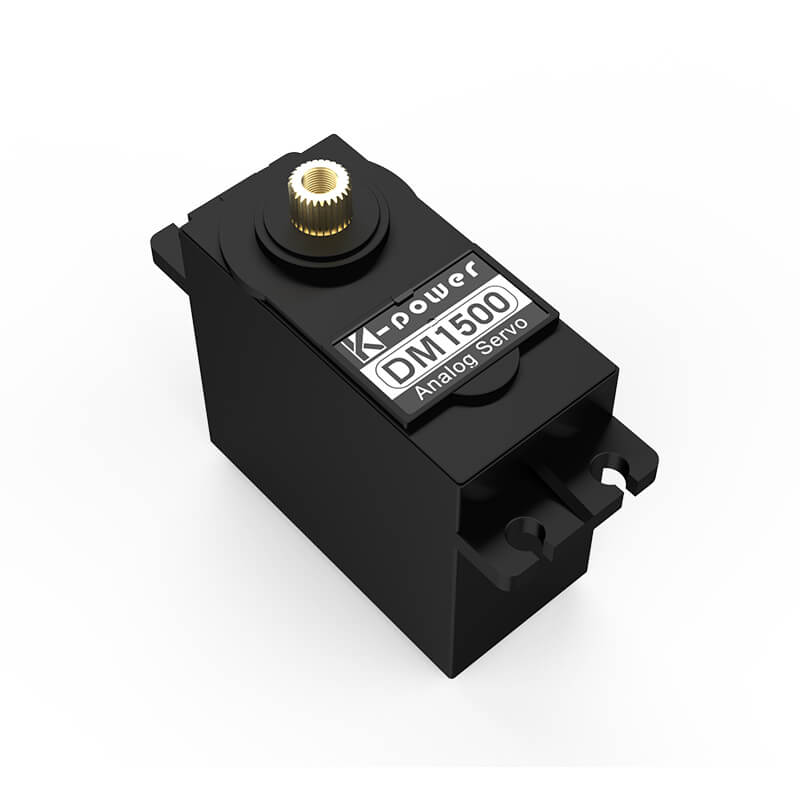

DM1500 16.3KG Digital Metal Gear Servo

DC motor metal gear
Features
Get Samples Now

Applications

R/C Models
Robotics
Specifications

Performance

  • Voltage
    6.0V
  • Rated torque
    /
  • Rated current
    /
  • Stall torque
    15kg·cm
  • Stall current
    2500mA
  • Operating speed
    {content:operating_speed}
  • No load current
    600mA
  • Idle current
    6mA

Mechanical

  • Dimensions
    40*20*37.5mm³
  • Weight
    60g
  • Limit angle
    120°
  • Excessive play
    ≤0.5°
  • Shell material
    plastic
  • Gear material
    metal
  • Spline
    25T
  • Bearing type
    /
  • Motor type
    DC motor
  • Angle sensor
  • Storage temperature
    /
  • Operating temperature
    -10℃～50℃

Control & Protection

  • Signal type
    PWM
  • Rotation angle
  • Pulse width range
    900→2100 μsec
  • Neutral position
    1500 μsec
  • Dead band
    /
  • Rotating direction
    rotation direction
  • Feedback
    position feedback
  • Protection type
    Stall Protection

Reliability

  • Load life
    /
  • Noise
    /
  • Waterproof
    /

Dimension Drawing

/static/upload/image/20230327/1679902727175277.png dimension drawings
