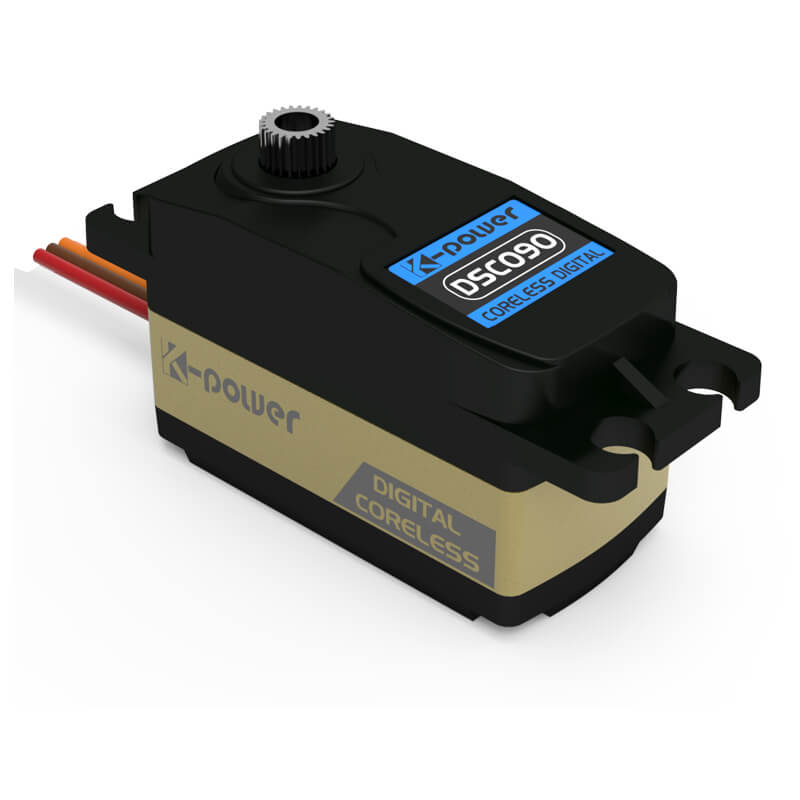

DSC090 9.3KG 0.08s coreless motor metal gear Low Profile Servo

metal servo HV
Features
Get Samples Now

Applications

R/C Models
Specifications

Performance

  • Stall Torque
    12kg·cm
  • No-load Speed
    0.11s sec/60°
  • Travel Angle
    120° 支持定制
  • Voltage Range
    6.0V
  • Dimensions
    40*20*25.95mm³
  • Weight
    43.5g
  • Shell Material
    aluminum case
  • Gear Material
    Titanium
  • Spline
    25t
  • Bearing
    Dual BB
  • Motor Type
    Coreless Motor
  • Angle Sensor
  • Signal Type
    PWM | UART-TTL | RS-485
  • Waterproof
    IP42
  • Operating Temperature°C
    -10～50°C
  • Storage Temperature
    -15～80°C

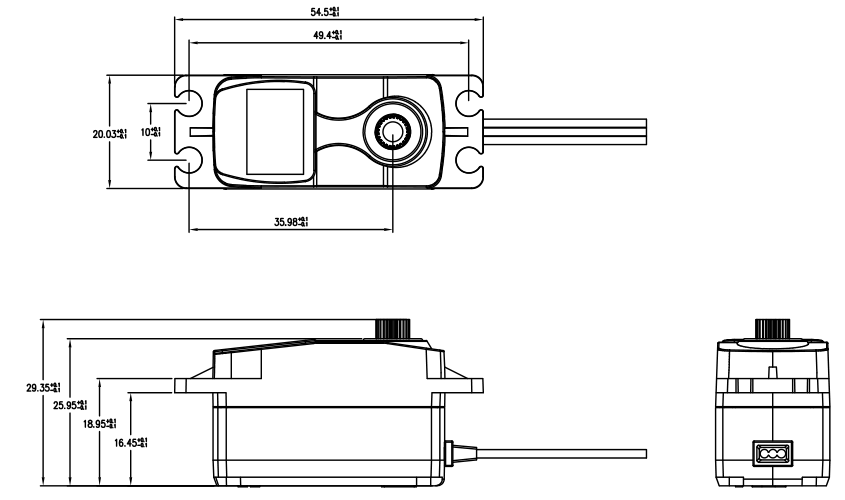

Dimension Drawing

/static/upload/image/20230329/1680081690859738.png dimension drawings
