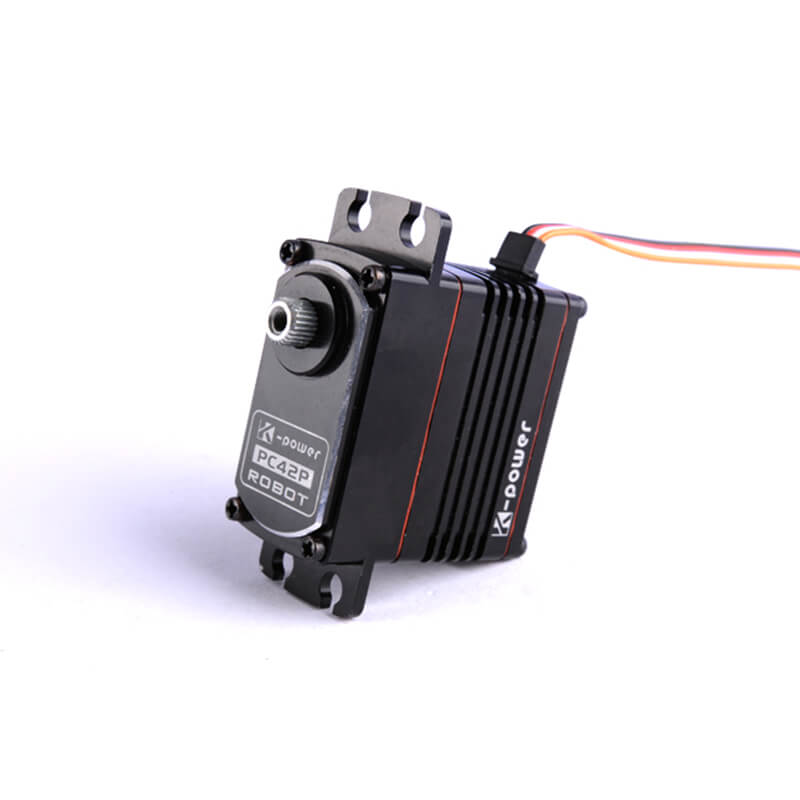

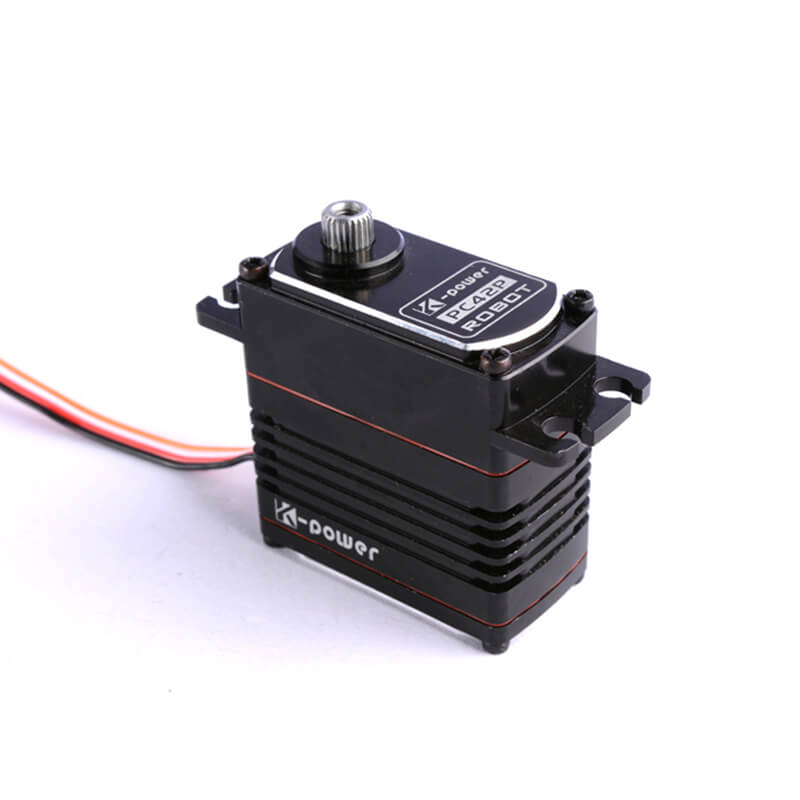

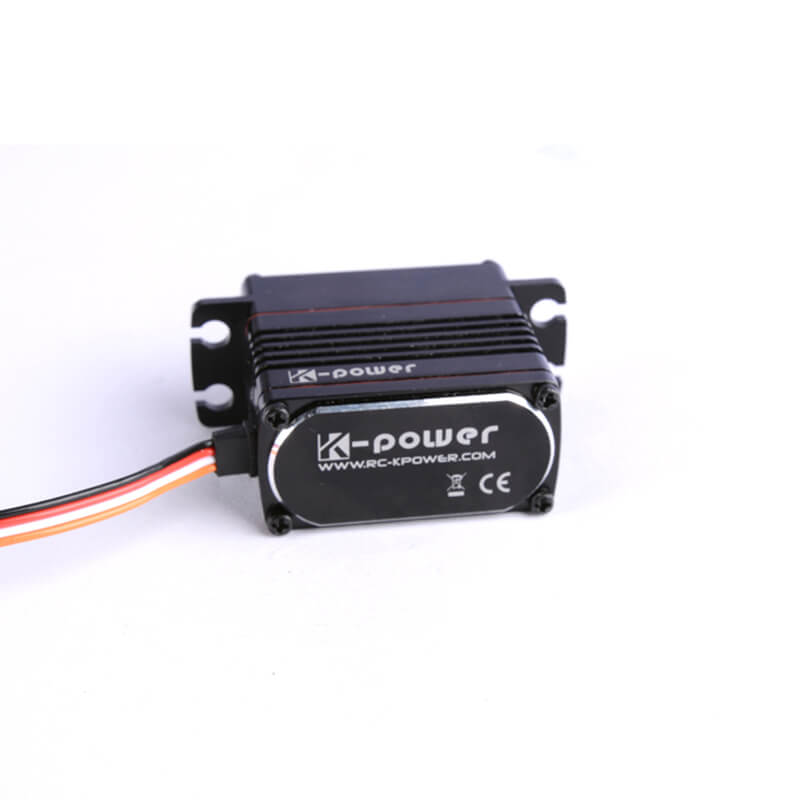

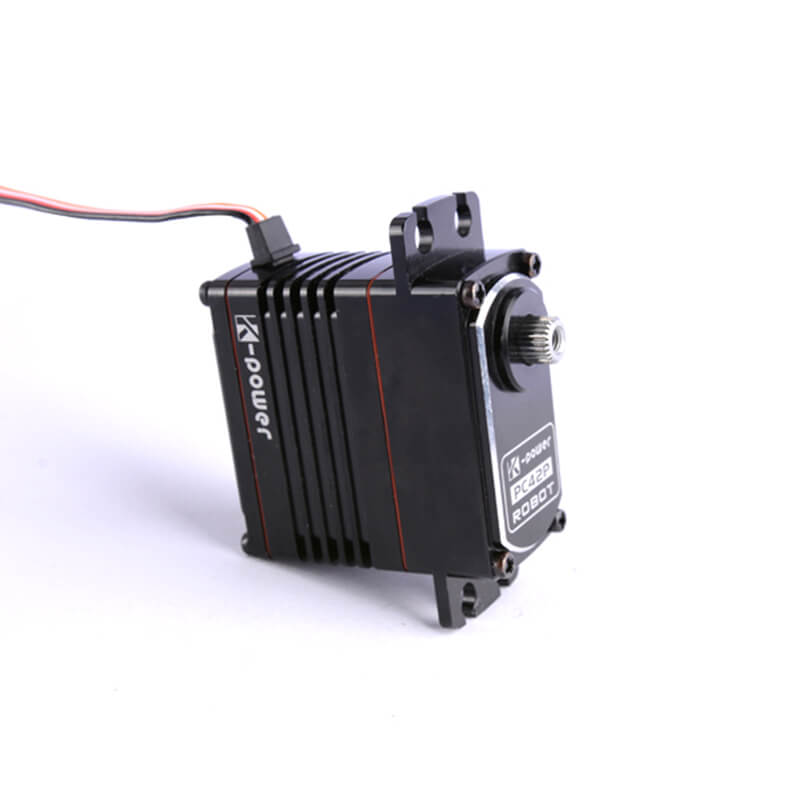

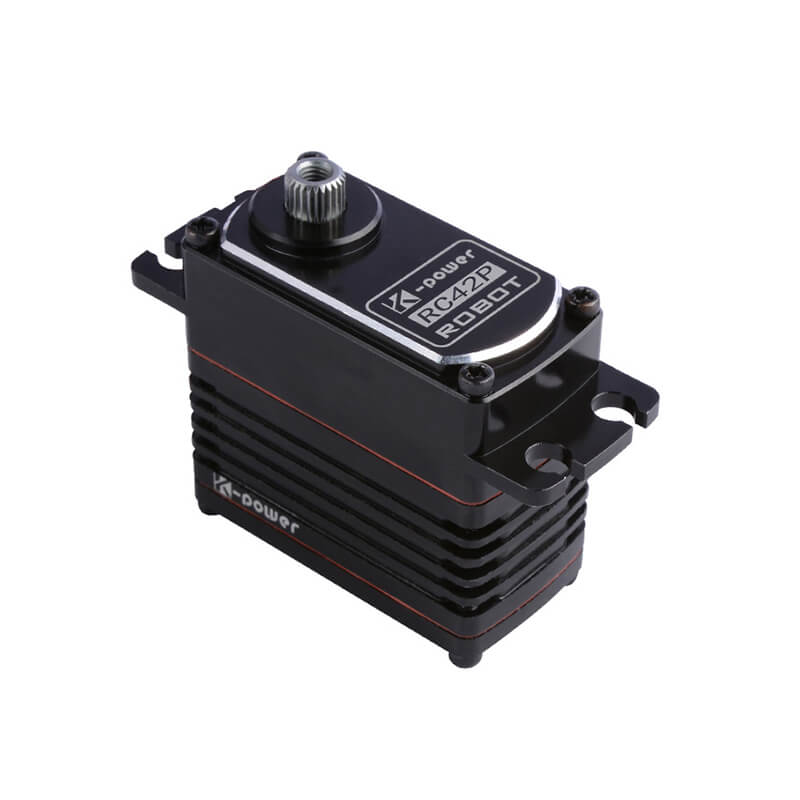

Robotics Servo RC42P

Robotics High Torque
Features
Get Samples Now

Applications

Robotics
Specifications

Performance

  • Voltage
    8.4V
  • Rated torque
    /
  • Rated current
    /
  • Stall torque
    40kg
  • Stall current
  • Operating speed
    {content:operating_speed}
  • No load current
    400mA
  • Idle current
    10mA

Mechanical

  • Dimensions
    40*20*39.6mm
  • Weight
    75.5g
  • Limit angle
    360°
  • Excessive play
    ≤0.5°
  • Shell material
    CNC Aluminium Alloy
  • Gear material
    7075 Aluminium Coated With Titanium
  • Spline
    25T
  • Bearing type
    /
  • Motor type
    Coreless
  • Angle sensor
  • Storage temperature
    /
  • Operating temperature
    -10℃～50℃

Control & Protection

  • Signal type
    TTL
  • Rotation angle
  • Pulse width range
    500→2500 μsec
  • Neutral position
    1500 μsec
  • Dead band
    3 μsec
  • Rotating direction
    Counterclockwise
  • Feedback
    /
  • Protection type
    /

Reliability

  • Load life
    /
  • Noise
    /
  • Waterproof
    /

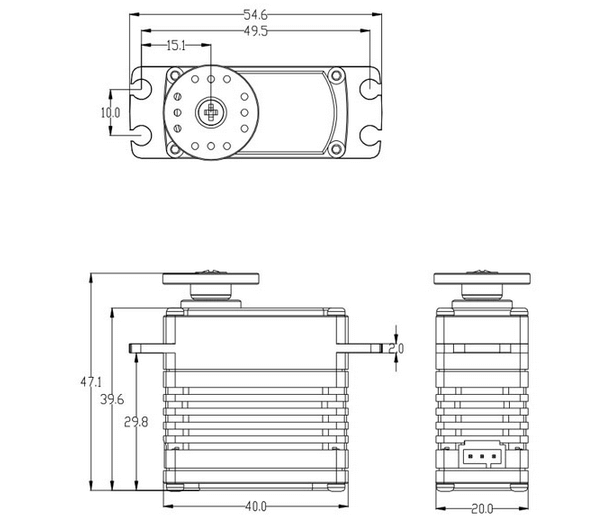

Dimension Drawing

/static/upload/image/20230418/1681808143627149.png dimension drawings

Downloads

Specification
2D Drawings
3D Model
Usage Guidelines

FAQs

Select 2D drawings download format

PDF
DWG

Select 3D drawings download format

STEP
IGES
STL
