M0170 Metal Gear Mini Servo -Kpower

M0170 17G Plastic Shell Metal Gear Mini Servo

M0170 17G Plastic Shell Metal Gear Mini Servo

RC servo

Robot servo

Drone servo

Smart home servo

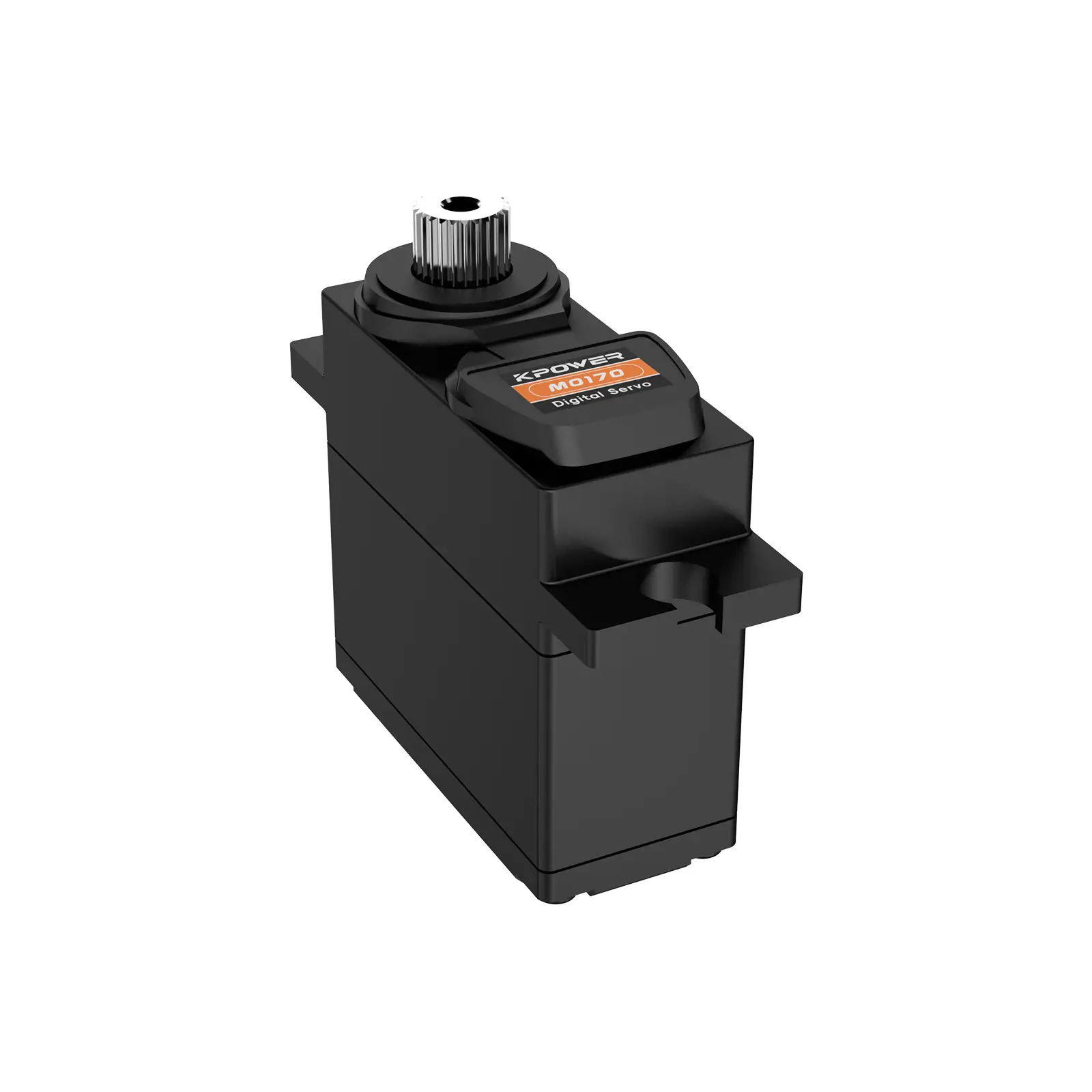

M0170 is a metal gear micro digital servo with a torque of 2.5KG. Its lightweight design makes operation smoother, faster and more efficient.

Features

Designed specifically for 1/8 and 1/10 scale model cars.
Standard 25T output spline.
<0.5° precision metal gears.
Long-life linear potentiometer.
330Hz high-speed digital communication.
Standard three-wire PWM interface.
Output ball bearing support design.
-10°C+IP42 low temperature and dust resistance.

Add to Inquiry

Get a Sample Now

Applications

fixed-wing drone

industrial automation

RC model aircraft

RC 1/10 remote control car model

smart coffee machine

fixed-wing drone

industrial automation

RC model aircraft

RC 1/10 remote control car model

smart coffee machine

Specifications

Performance Parameters

Stall Torque

2.5kg·cm
No-load Speed

0.11sec/60°
Travel Angle

120° *custom supported
Voltage Range

4.8-8.4V
Stall Current

1500mA
Dimensions

30x13.2x29.5mm
Weight

21g (0.74oz)
Case Material

Plastics
Gear

Metal
Spline

25T Φ6mm
Bearing

1BB
Motor

DC Brushed Motor
Position Sensor

Potentiometer
Signal & Protocol

PWM | UART-TTL | RS-485
Waterproof

IP42
Operating Temperature

-10～50°C

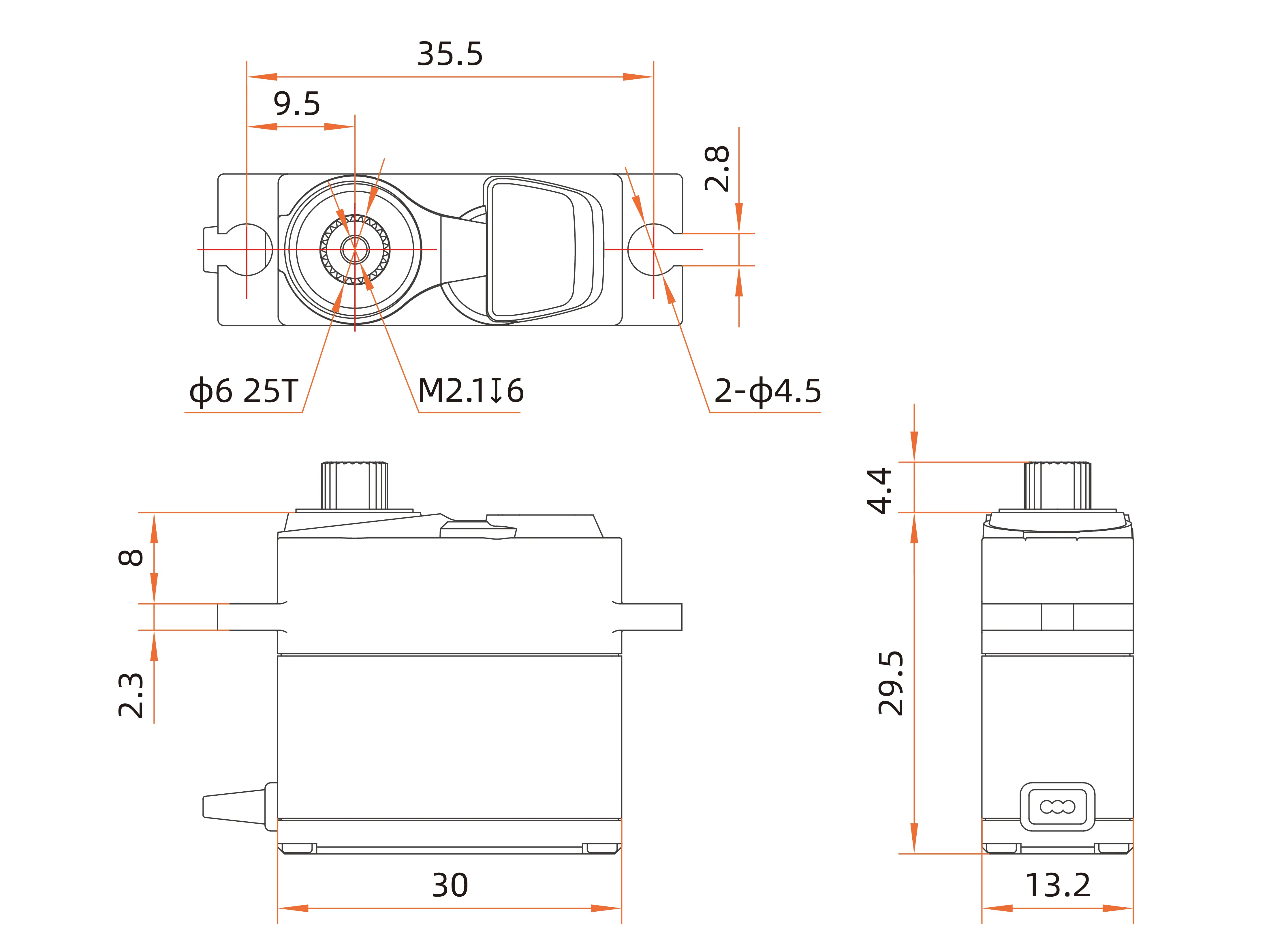

Dimension Drawing & Accessories

Downloads

Dimension Drawing

3D Model
