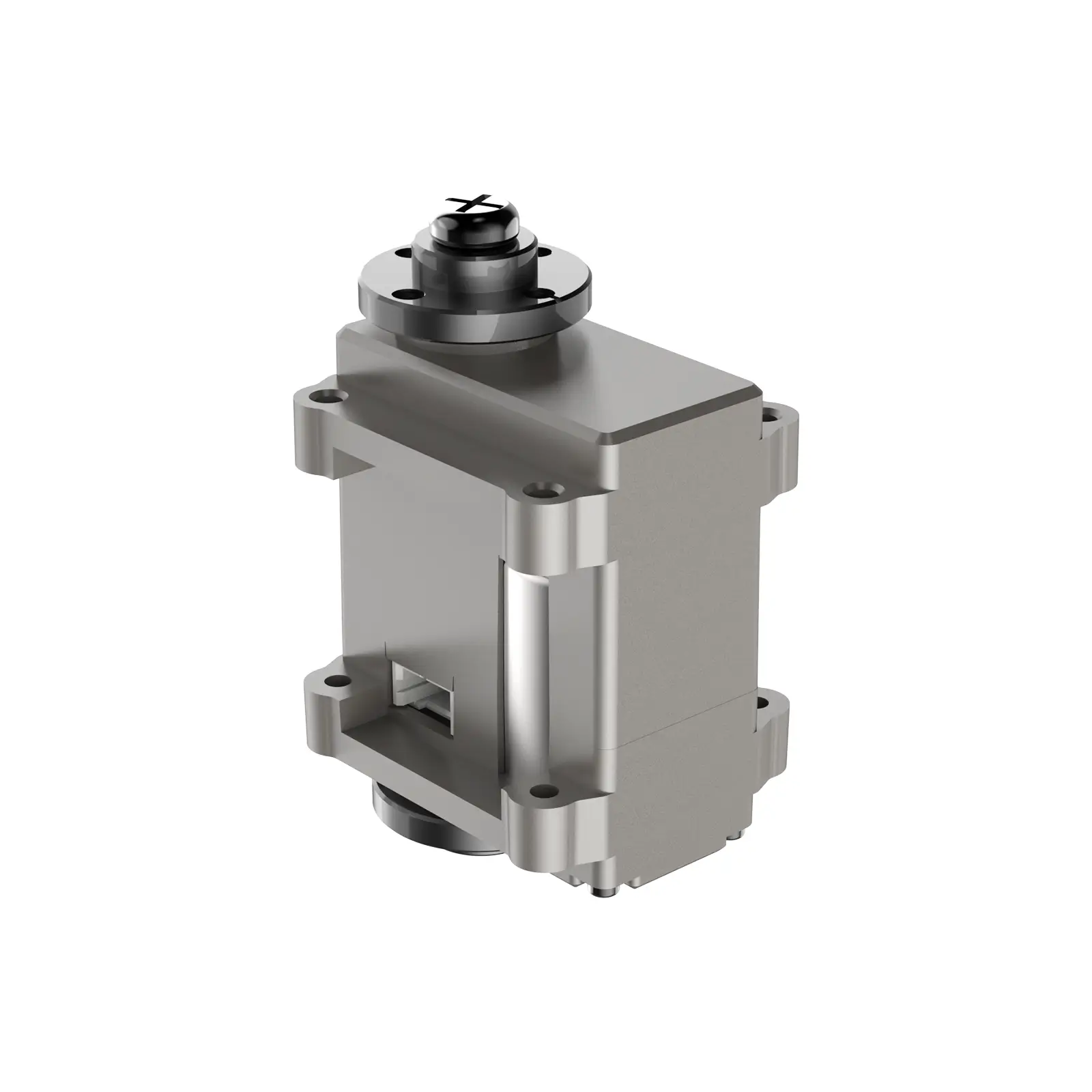

RC05P 5kg Dual Output Shaft Robot Servo
RC05P 5kg Dual Output Shaft Robot Servo
RC05P 5kg Dual Output Shaft Robot Servo
RC05P 5kg Dual Output Shaft Robot Servo
RC05P 5kg Dual Output Shaft Robot Servo
RC05P 5kg Dual Output Shaft Robot Servo
RC05P 5kg Dual Output Shaft Robot Servo
RC05P 5kg Dual Output Shaft Robot Servo

RC05P 5kg Dual Output Shaft Robot Servo

The RC05P uses TTL serial communication, hollow cup servo motors, and 360° magnetic encoding sensors. It is designed specifically for small robot projects, enabling more space-saving designs.

Features

  • Dual steering wheel design
  • TTL serial communication
  • Independent ID control
  • 360° magnetic encoding sensor
  • Precision gear cutting
  • Three-loop feedback for position, current, and temperature
  • 3W high-speed hollow cup motor
  • Efficient heat dissipation CNC shell
  • Dual output shaft ball bearing design
Add to Inquiry
Get a Sample Now

Applications

Desktop robotic arm
Desktop robotic arm
educational robot
educational robot
industrial automation
industrial automation
multi-legged robot
multi-legged robot
smart coffee machine
smart coffee machine

Specifications

Performance Parameters

  • Stall Torque
    5kg·cm

  • No-load Speed
    0.08sec/60°

  • Travel Angle
    180° *custom supported

  • Voltage Range
    4.8-8.4V

  • Stall Current
    2000mA

  • Dimensions
    23x12x28mm

  • Weight
    24.4g (0.8oz)

  • Case Material
    Aluminum Alloy

  • Gear
    Metal

  • Spline
    N/A

  • Bearing
    2BB

  • Motor
    Coreless Motor

  • Position Sensor
    Magnetic Encoder

  • Signal & Protocol
    PWM | UART-TTL | RS-485

  • Waterproof
    IP42

  • Operating Temperature
    -10~50°C

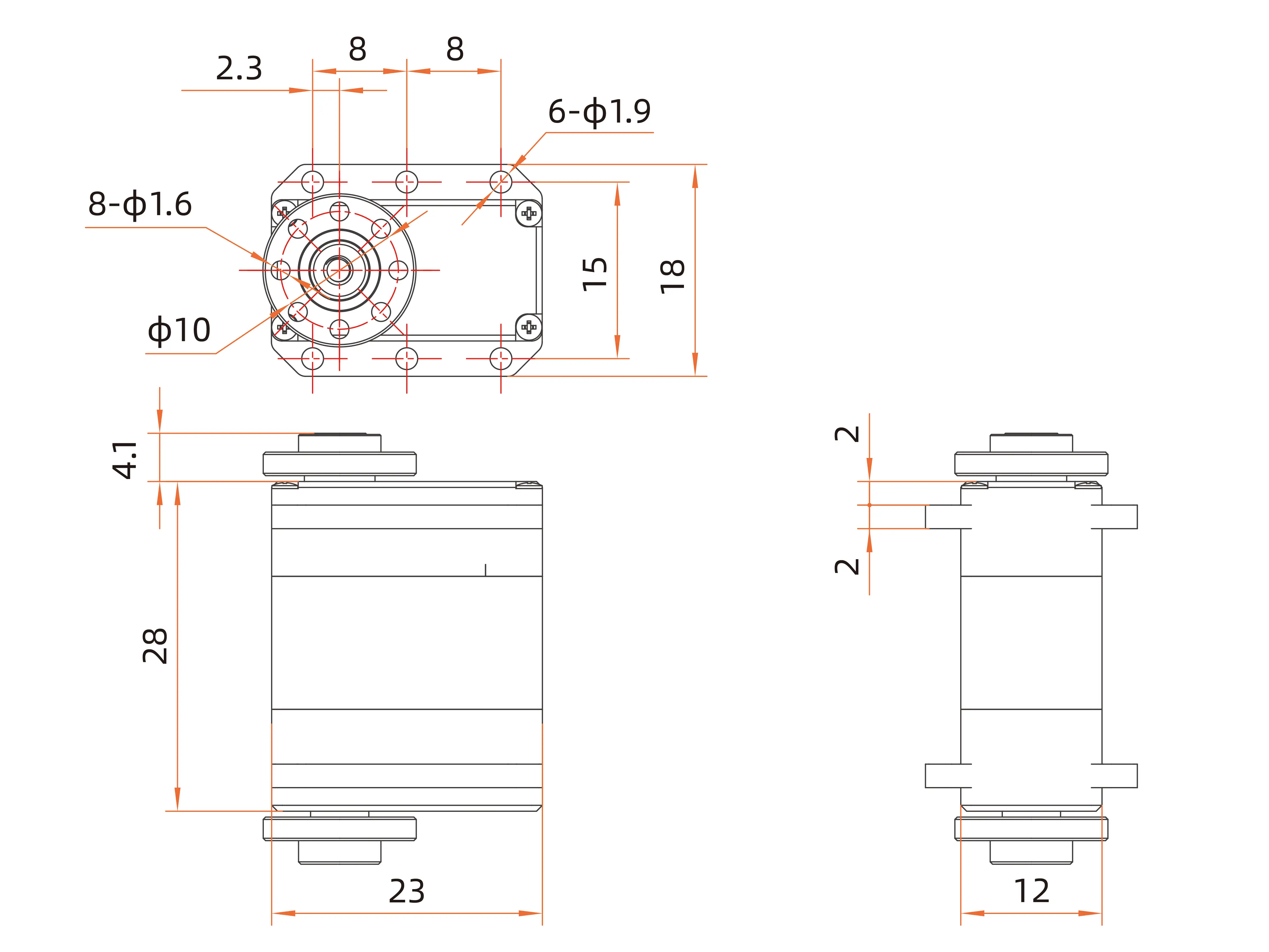

Dimension Drawing & Accessories
