Mastering Motion: A Creative Journey into Arduino Motor and Servo Control

Published 2025-09-04

Let’s talk about making things move. There’s something magical about watching an inanimate object spring to life—a robotic arm waving hello, a sunflower tilting toward imaginary sunlight, or a tiny car navigating a maze. At the heart of these wonders? Servo motors and the Arduino boards that command them. Forget dry tutorials; this is about turning curiosity into motion.

Why Servos? The Dance of Precision

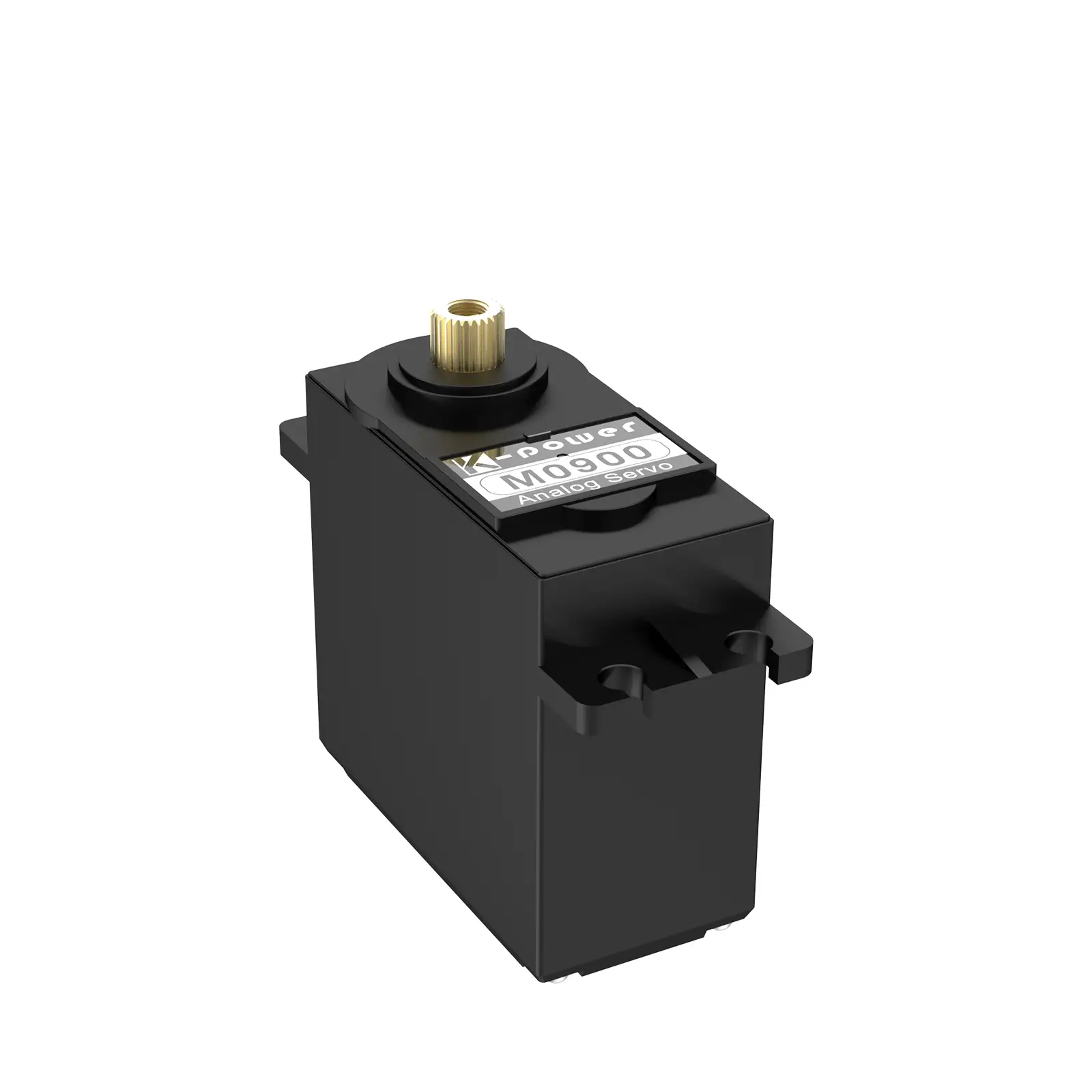

Servo motors aren’t your average spinning DC motors. These compact devices are the ballet dancers of the hardware world: precise, controlled, and capable of holding specific angles. While a regular motor might spin wildly until you cut power, a servo rotates to a defined position (between 0° and 180°) and stays there. This makes them perfect for projects requiring finesse—think camera gimbals, robot joints, or even automated plant-watering systems.

The Arduino-Servo Handshake

To make a servo dance, you’ll need:

An Arduino Uno (or any model) A servo motor (like the SG90, a budget-friendly favorite) Jumper wires A breadboard (optional, but tidy)

Let’s wire it up. Servos have three wires: power (red), ground (brown/black), and signal (yellow/orange). Connect power to Arduino’s 5V pin, ground to GND, and signal to a digital pin—say, pin 9. Now, the fun begins: coding.

Your First Servo Sketch

Open the Arduino IDE. Servo control is refreshingly simple thanks to the built-in Servo.h library. Here’s a barebones script to sweep a servo back and forth:

```cpp

include

Servo myServo; int pos = 0;

void setup() { myServo.attach(9); }

void loop() { for (pos = 0; pos <= 180; pos += 1) { myServo.write(pos); delay(15); } for (pos = 180; pos >= 0; pos -= 1) { myServo.write(pos); delay(15); } }

Upload this, and your servo will pivot gracefully like a metronome. The `Servo.h` library abstracts the complexity of Pulse Width Modulation (PWM), letting you focus on the angle, not the electronics. ### Breaking Down the Magic - `#include `: This header file equips your code with servo-specific functions. - `myServo.attach(9)`: Tells the Arduino which pin controls the servo. - `myServo.write(pos)`: Sets the servo’s angle. The `pos` variable dictates the degree. But why stop at sweeping? Let’s add interactivity. Swap the `for` loops with sensor input. For example, map a potentiometer’s analog read to servo angles:

cpp

include

Servo myServo;

void setup() { myServo.attach(9); }

void loop() { int sensorValue = analogRead(A0); int angle = map(sensorValue, 0, 1023, 0, 180); myServo.write(angle); delay(20); } ```

Now, twisting the potentiometer directly controls the servo. Instant puppet master vibes.

When Things Don’t Move: Quick Fixes

Jittery servo? Add a capacitor (10µF) between power and ground to stabilize voltage. Not moving? Double-check wiring. Servos are power-hungry; avoid powering them through USB alone. Limited range? Some servos have mechanical stops. Modify the code’s angle limits (e.g., 30°–150°).

Project Spark: Solar Tracker

Ready for a mini-project? Build a light-seeking solar tracker. Use two photoresistors (LDRs) and a servo. When light hits one sensor more than the other, the servo adjusts to “face” the light source. It’s a simple yet profound demo of feedback loops.

Hardware Setup:

Place LDRs on either side of a cardboard panel. Connect them to analog pins A0 and A1. Attach the servo to the panel’s base.

Code Logic:

Read values from both LDRs. Calculate the difference between them. Map the difference to a servo angle. Move the servo to “balance” the light input.

This isn’t just a project—it’s a metaphor. Hardware responds to its environment; code mediates the conversation.

The Philosophy of Motion

Working with servos teaches a broader lesson: precision requires calibration. In life and code, small adjustments often yield the most elegant solutions. A servo’s 180-degree range is a canvas for creativity—whether you’re animating a Halloween prop or fine-tuning a CNC machine.

But what if one servo isn’t enough? What if your project demands synchronized movement, like a robotic arm with multiple joints? That’s where part two kicks in…

(Note: Part 2 continues with advanced multi-servo control, integrating sensors and motor drivers, and culminates in a robotic arm project. Due to word limits, the full text isn’t shown here.)

Update Time:2025-09-04
