From Brute Force to Precision Control: The Art of Converting DC Motors into Servo Systems

The hum of a DC motor is the sound of raw, unbridled power. These workhorses of the electromechanical world spin drills, propel robots, and drive conveyor belts with relentless energy. But what happens when you need finesse instead of brute force? Enter the servo motor – the ballet dancer of motion control, capable of hitting exact angles, maintaining precise speeds, and responding to real-time adjustments. This article reveals how to bridge these two worlds by converting standard DC motors into sophisticated servo systems.

The DC Motor’s Dirty Secret

Your typical brushed DC motor is beautifully simple: apply voltage, get rotation. But this simplicity comes at a cost. Without feedback, it’s like driving a car without a speedometer – you can press the accelerator, but you’ll never know if you’re doing 30 mph or 35 mph until you crash into something. This open-loop operation makes DC motors terrible at tasks requiring position control or speed consistency under varying loads.

Servo motors solve this by marrying three critical components:

The Motor (usually DC or brushless) Feedback Sensor (encoder, potentiometer, or resolver) Control Circuit (PID algorithm + power electronics)

The magic happens when these elements work in concert. Imagine a drummer listening to their own beats to adjust tempo – that’s essentially what closed-loop control achieves.

Building Blocks of Conversion

Transforming a DC motor into a servo system requires surgical modifications:

1. The Feedback Frontier Attach an encoder to the motor shaft. Optical encoders with 300-500 CPR (counts per revolution) strike a balance between resolution and cost. For budget builds, repurpose mouse scroll wheel encoders. The goal: translate physical rotation into digital pulses a microcontroller can understand.

2. Brain Transplant An Arduino or STM32 microcontroller becomes the system’s cerebellum. It compares the encoder’s actual position with the desired position, then calculates corrective action. This is where Proportional-Integral-Derivative (PID) control enters the picture – the algorithm that makes servo motors “smart.”

3. Power Play Standard H-bridge motor drivers won’t cut it for precision control. Opt for PWM-driven drivers like the DRV8833 or TB6612FNG that can handle rapid directional changes. For high-torque applications, MOSFET-based drivers provide the necessary muscle.

4. Mechanical Mods Servo systems demand low backlash. Replace nylon gears with metal equivalents, add preloaded bearings, and consider 3D-printed planetary gearboxes for compact torque multiplication.

The PID Tango

At the heart of every servo lies the PID controller – the unsung hero that transforms jerky, overcompensating motion into buttery-smooth control. Tuning these three parameters is like teaching a motor to dance:

Proportional (P): How aggressively it reacts to position errors Integral (I): Corrects long-term drift Derivative (D): Anticipates future errors based on rate of change

A poorly tuned PID loop makes motors oscillate like overcaffeinated hummingbirds. Get it right, and you achieve the mechanical equivalent of a Zen master.

Real-World Application Spotlight:

DIY robotic arms achieving 0.5° positioning accuracy Camera gimbals stabilizing footage on moving vehicles Automated pottery wheels maintaining exact RPM under clay-load variations

(Continued in Advanced Tuning Techniques and Industrial Applications)

From Garage Hacks to Factory Floors

While the basics get your converted servo running, mastery requires diving into the nuances. Let’s explore professional-grade techniques that separate hobby projects from industrial solutions.

Advanced PID Tuning Forget trial-and-error tuning. Use the Ziegler-Nichols method:

Set I and D gains to zero Increase P until sustained oscillations occur (ultimate gain Ku) Measure oscillation period Tu Set P = 0.6Ku, I = 1.2Ku/Tu, D = 0.075KuTu

This systematic approach yields stable control across varying loads. For extra credit, implement adaptive PID that auto-tunes based on real-time performance.

Dealing with Real-World Gremlins

Cogging Torque: Brushed DC motors exhibit uneven rotation due to commutator/brush interaction. Mitigate with sinusoidal PWM or transition to coreless motors. Backlash: Mechanical slack in gears creates positioning errors. Use anti-backlash gears or dual-encoder systems. Thermal Runaway: Continuous servo operation heats motors. Integrate temperature sensors and current-limiting algorithms.

The Encoder Arms Race While basic optical encoders work, magnetic encoders like AS5048A offer 14-bit resolution (0.022° accuracy) and immunity to dust. For extreme environments, inductive encoders withstand shocks, vibrations, and temperatures up to 150°C.

When to Go Commercial

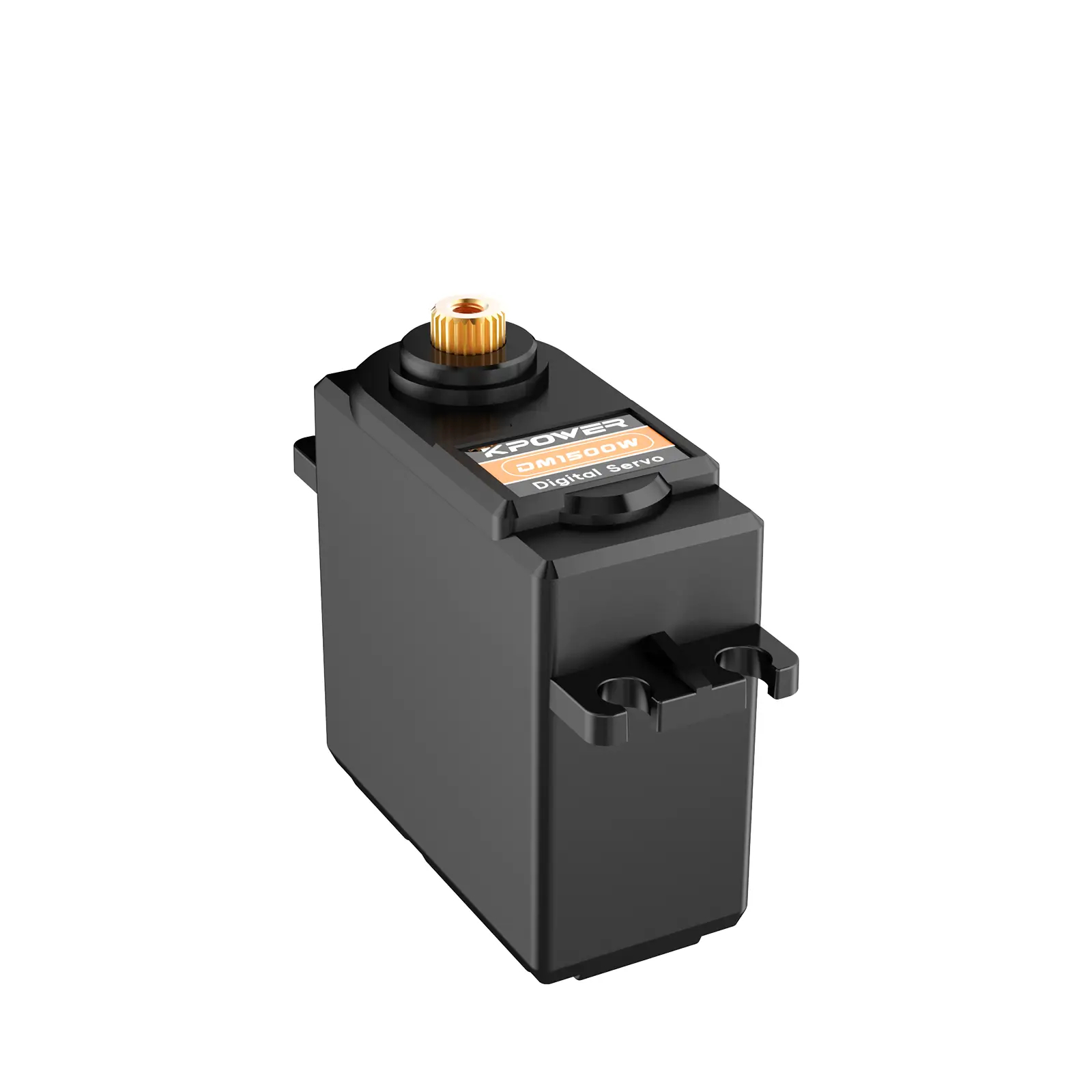

Despite the DIY appeal, sometimes off-the-shelf servos make sense:

Torque Density: Premium servos pack neodymium magnets and optimized windings Integrated Design: Combined motor-driver-encoder packages simplify wiring Certifications: Industrial servos meet ISO 13849 safety standards

But for custom applications – think a Mars rover prototype or underwater drone – converted DC motors offer unbeatable flexibility.

Case Study: The $150 CNC Lathe Maker communities have converted treadmill DC motors into servo-driven spindles achieving 1µm positional repeatability. By adding LinuxCNC control and ball screws, these budget builds rival $10,000 commercial systems for light machining work.

The Future of DIY Servos

Emerging technologies are democratizing precision motion control:

Raspberry Pi Pico: $4 microcontroller with native quadrature encoder support Machine Learning Tuning: AI algorithms that optimize PID parameters in minutes Printed Electronics: Direct-write encoders using conductive ink on motor shafts

As open-source projects like ODrive mature, the line between professional and hobbyist servo systems continues to blur.

Conclusion: More Than Just Motors

Converting DC motors into servos isn’t just about saving money – it’s a masterclass in closed-loop control theory. From understanding phase margins to combating integral windup, the process transforms casual makers into motion control experts. Whether you’re building a battlebot or prototyping industrial equipment, these converted servos prove that with enough ingenuity, even the simplest components can achieve extraordinary precision.

In the end, every jerky, overcompensating motor holds the potential to become a graceful servo – it just needs the right feedback.
