EM3 3kg Micro Robot Force Control Clutch Servo Motor
EM3 3kg Micro Robot Force Control Clutch Servo Motor

EM3 3kg Micro Robot Force Control Clutch Servo Motor

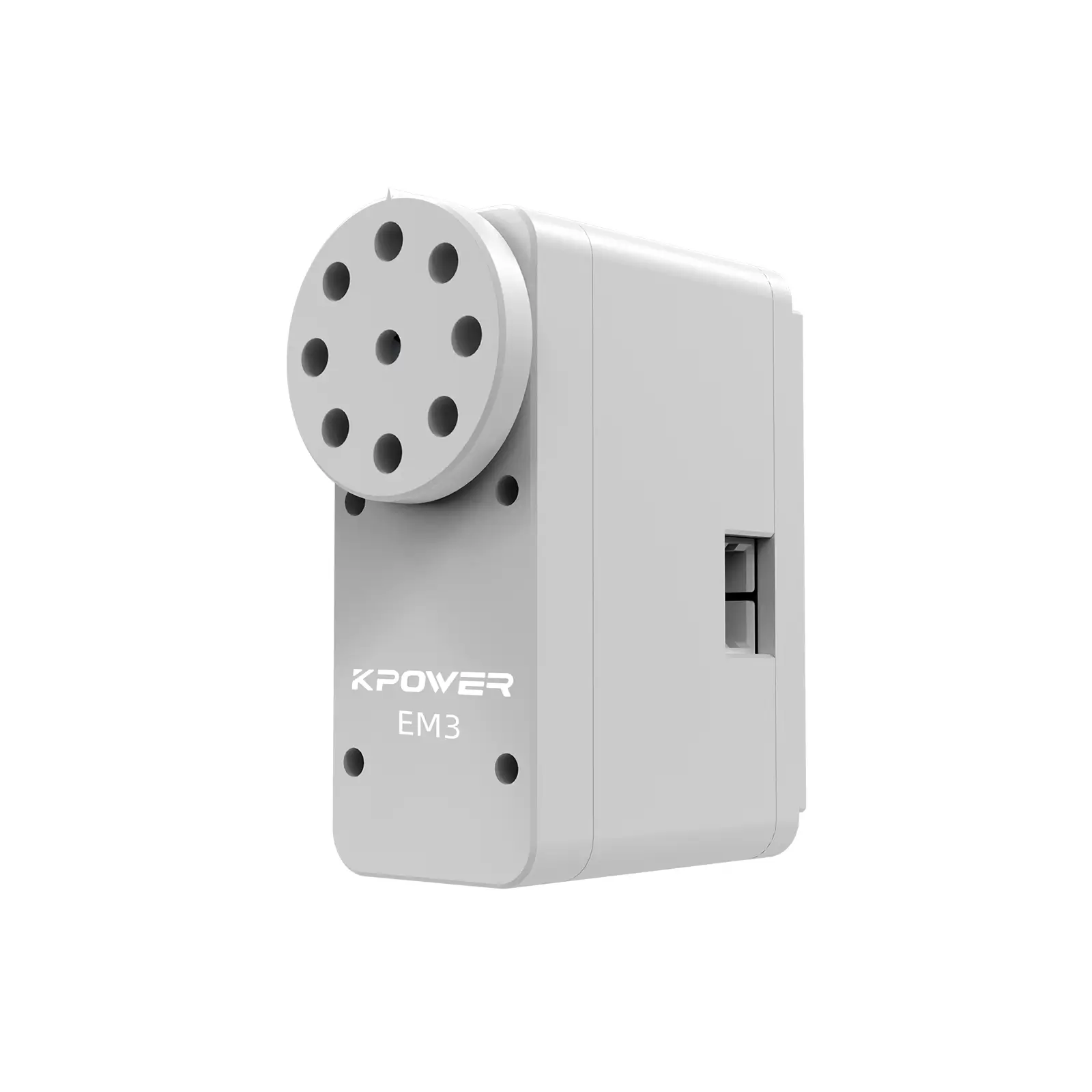

EM3 is a companion robot servo motor with an ultra-light weight of 9g, built-in overload clutch disengagement protection structure, TTL serial port communication, independent ID control, and 0.3° high-resolution position sensing.

Features

  • 9g ultra-light weight, 3kg high torque output
  • Built-in overload clutch disengagement protection structure
  • High torque M10 strong magnetic brushed motor
  • TTL serial port communication, independent ID control
  • Full closed-loop feedback for position, current, and temperature
  • 0.3° high-resolution position sensing
  • Intelligent smooth motion planning algorithm
Add to Inquiry
Get a Sample Now

Applications

wheeled robot
wheeled robot
bionic robot
bionic robot
AI robot
AI robot

Specifications

Performance Parameters

  • Stall Torque
    3kg·cm

  • No-load Speed
    0.08sec/60°

  • Travel Angle
    300° *custom supported

  • Voltage Range
    4.8-8.4V

  • Stall Current
    000mA

  • Dimensions
    28.5x12x22.5mm

  • Weight
    9g (0.32oz)

  • Case Material
    Plastics

  • Gear
    POM

  • Spline
    N/A

  • Bearing
    /

  • Motor
    DC Brushed Motor

  • Position Sensor
    Potentiometer

  • Signal & Protocol
    PWM | UART-TTL | RS-485

  • Waterproof
    IP42

  • Operating Temperature
    -10~50°C

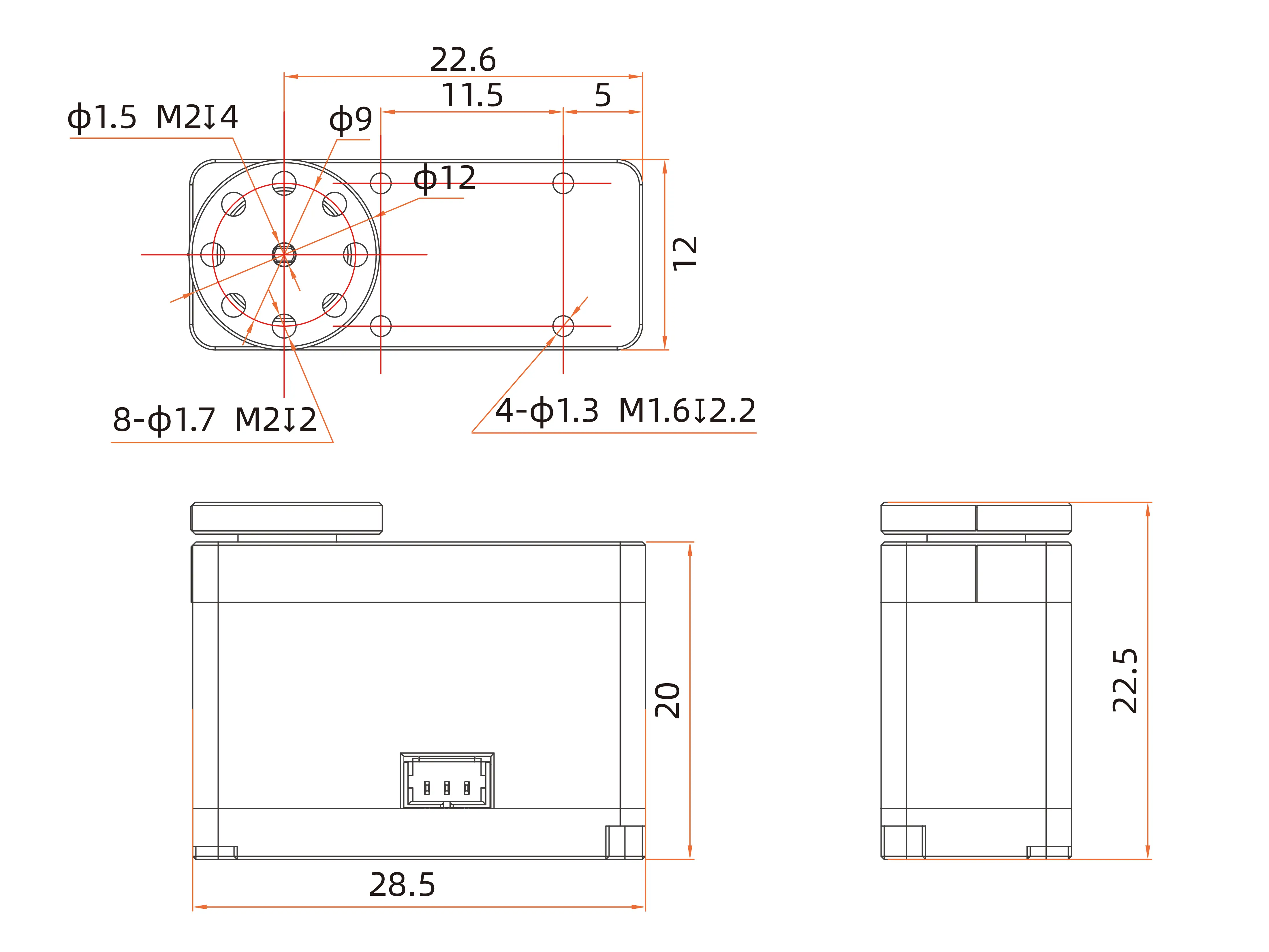

Dimension Drawing & Accessories

Downloads

FAQs

What types of servos and motors are provided?

Kpower offers over 300 servo models and over 50 brushless motor variants. Ranging from 2.5g micro servos to 200kg high-torque brushless servos, and from UAV power motors to brushless hub motors. Our products span multiple industries, such as smart homes, drones, electric vehicles, and precision agriculture.

Can you recommend some mass-produced models?

Click the side entrance on the page to get in touch with our product experts or fill in the inquiry form. Our product engineers will recommend suitable drive modules for you.

How to contact Kpower?

You can email your requirements to info@kpower.com or call us at +86-180 0277 7165. Our company headquarters is located in Hengli Town, Dongguan, China. You are welcome to visit and discuss at any time.

How can I apply for samples? How long will it take for delivery?

For industry-leading customers, we are pleased to offer some free samples for functional verification. For specific details, click the side entrance on the page to contact our product experts. For standard products in stock, samples will be dispatched within 48 hours after order confirmation. For custom products, please contact our sales representative for the delivery time.




What do I need to provide for customizing?

We hope you can share demand info such as product functions, usage scenarios, and reliability, including but not limited to torque, speed, voltage, size boundaries, and communication protocols. Our engineers and product experts will provide you with the most suitable product solution from multiple perspectives such as technical feasibility, manufacturing feasibility, product reliability, and cost optimization according to your needs.
